Lithium Battery Capacity Grading Equipment
> 1800V Regenerative Battery Pack Aging Machine
Add to collection Cancel collection
Related drawing

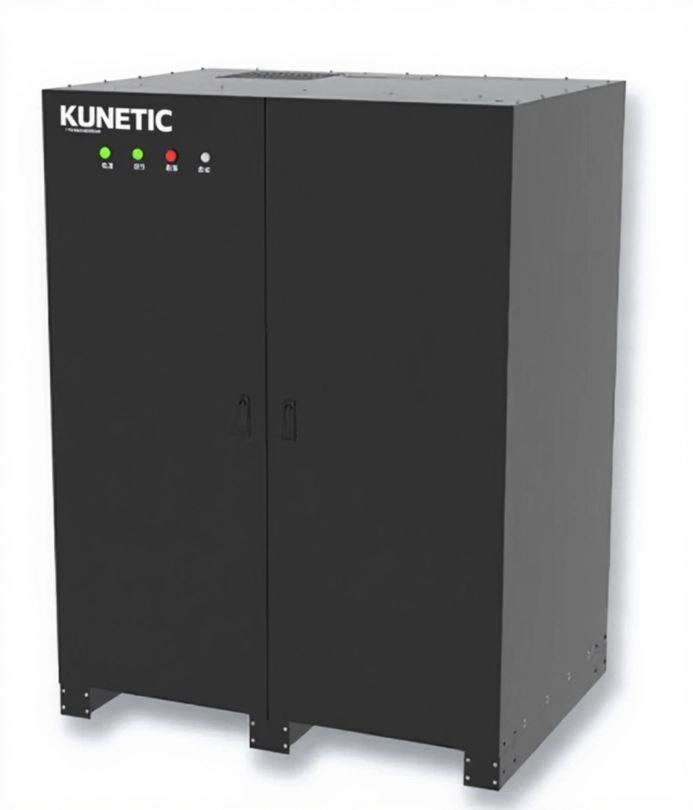

1800V Regenerative Battery Pack Aging Machine(P10285)

Promotional Price:${{model.attbuying.price}}

Market Price:$999999.00

Sold:0 Comment:0

Description:
{{model.shortname}}
Count:

+ -

Stock:{{model.attbuying.number}}
Buy Now Add to cart

Related products

Specification

Value

Input Power

AC380V±10% 50Hz, 3-Phase 4-Wire

Overall Efficiency

Up to 95%

Charge/Discharge Power Factor

≥99%

THDi

≤5%

Charge Voltage Range

400V – 1800V (Customizable)

Charge/Discharge Current Range

50A – 500A (Customizable)

Voltage & Current Accuracy

±0.05% F.S. + ±0.05% R.D.

Number of Channels

1-4 Channels (Customizable)

Channel Parallel Connection

Supported

Working Modes

Constant Current (CC), Constant Voltage (CV), Constant Power (CP), Constant Resistance (CR)

Current Switching Time

≤20ms (10% to 90% F.S.)

Voltage Switching Time

≤40ms (-90% to 90% F.S.)

Primary Communication

TCP/IP

Expansion Communication

RS485 & CAN for BMS Integration

Cut-off Conditions

Voltage, Current, Time, Capacity, Temperature

Protection Functions

Surge, Over/Under Voltage, Over/Under Current, Phase Loss, Anti-Reverse Polarity, Leakage, Over-Temperature, Power-off Data Protection, Emergency Stop

Key Features:
High-Voltage & Customizable Power: Offers a wide and customizable testing range from 400V to 1800V and 50A to 500A, making it a versatile battery aging cabinet for various high-power battery modules.
Superior Energy Efficiency: Achieves up to 95% overall efficiency with a power factor of ≥99%. The regenerative energy recovery system feeds power back to the grid during discharge, drastically cutting electricity costs and thermal output.
Precision Control & Fast Response: Engineered with a high-performance DSP control algorithm, delivering outstanding accuracy of ±0.05% F.S. and rapid current/voltage switching times (20ms/40ms) for reliable and repeatable test results.
Comprehensive Testing Capabilities: Supports a full suite of programmable tests, including cycle life, capacity, DC internal resistance (DCIR), charge-discharge characteristics, and battery consistency analysis to fully evaluate battery performance.
Advanced Software & Integration: Features intuitive software with the BTSDA data analysis suite for real-time monitoring, custom curve plotting, and easy data export to Excel. Supports TCP/IP, CAN, and RS485 communication for seamless integration with BMS and other systems.
Robust Protection & Reliability: Built with independent channel control and multiple safety features, including over-voltage, reverse polarity, and dynamic load protection, to ensure the utmost safety for both the operator and the aging battery under test.
